Name:Acquire Image Series Version:1.4.1

Required Hardware:

CTEM Through-focus: Gatan CCD camera
STEM Through-focus: Gatan Digi-Scan

Required Software:

EMControl plug-in (Gatan), IPU Plug-in (HREM).

Description:
This plugin takes a series of through-focus/fixed-focus images in TEM mode or STEM mode by controlling the defocus through EM Control plugin. If you set the defocus step to zero (0), you can simply get a set of multiple images at the same conditions.

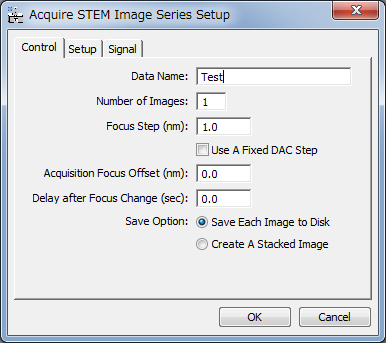

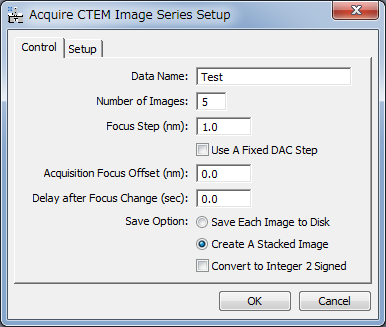

Imaging conditions should be adjusted before selecting the "Acquire Image Series" command of this plugin. Other parameters for image acquisition conditions and setting for image archive will be changed by using a custom dialog.

Manual:

Compiled HTML Help

Download:
  • Acquire Image Series plug-in (v1.4.1)

    for GMS 3.3 (64bit) (applicable from GMS 3.0)
    for GMS 2.3 32bit    GMS 2.3 64bit
    for GMS 2.1 32bit    GMS 2.1 64bit (applicable from GMS 2.0)
    for GMS 1.x (32bit)

  • IPU plug-in (Free Software)


  • Previous version:
  • Acquire Image Series plug-in (v1.4)

    for GMS 3.3 (64bit) (applicable from GMS 3.0)
    for GMS 2.3 32bit    GMS 2.3 64bit
    for GMS 2.1 32bit    GMS 2.1 64bit (applicable from GMS 2.0)
    for GMS 1.x (32bit)

    Usage:
    Copy the plugin into Plugins folder, and then launch the DM again. Commands for Through-focus/Fixed-focus image acquisition (Acquire Image Series) will be added to the IPU Menu.
    Note: The IPU plug-in should be also copied into Plugins folder.

    Contact Address:support@hremresearch.com

    Reference(s) to be cited:Acquire Image Series plug-in provided by HREM Research Inc. and freely downloaded at www.hremresearch.com
